直播上课的时候如何对学生进行考勤是个问题,本文提供了一个方法仅供参考,就是在直播过程中不定期进行点名,点到的学生必须在30秒(可自定义)内进行回复,否则视为缺席。
点名使用websocket来发送和接收消息。
使用workerman作为websocket服务端。
Linux下启动workerman
启动 php start.php start -d
停止 php start.php stop
查看状态 php start.php status
Windows下启动workerman
首先需要把PHP添加到系统环境变量里面。
启动 右键点击start_for_win.bat,选择【以管理员身份运行】
停止 直接关闭进程
添加websocket事件
修改Applications\Chat\Events.php
添加以下事件
// 直播点名 case 'dianming': // 非法请求 if(!isset($_SESSION['room_id'])) { throw new \Exception("\$_SESSION['room_id'] not set. client_ip:{$_SERVER['REMOTE_ADDR']}"); } $room_id = $_SESSION['room_id']; $client_name = $_SESSION['client_name']; $new_message = array( 'type'=>'dianming', 'from_client_id'=>$client_id, 'from_client_name' =>$client_name, 'to_client_id'=>'all', 'content'=>nl2br(htmlspecialchars($message_data['content'])), 'time'=>date('Y-m-d H:i:s') ); return Gateway::sendToGroup($room_id ,json_encode($new_message)); // 直播点名学员回应 case 'dianming_reply': // 非法请求 if(!isset($_SESSION['room_id'])) { throw new \Exception("\$_SESSION['room_id'] not set. client_ip:{$_SERVER['REMOTE_ADDR']}"); } $room_id = $_SESSION['room_id']; $client_name = $_SESSION['client_name']; $new_message = array( 'type'=>'dianming_reply', 'from_client_id'=>$client_id, 'from_client_name' =>$client_name, 'to_client_id'=>'all', 'content'=>nl2br(htmlspecialchars($message_data['content'])), 'time'=>date('Y-m-d H:i:s') ); return Gateway::sendToGroup($room_id ,json_encode($new_message));
然后重启workerman

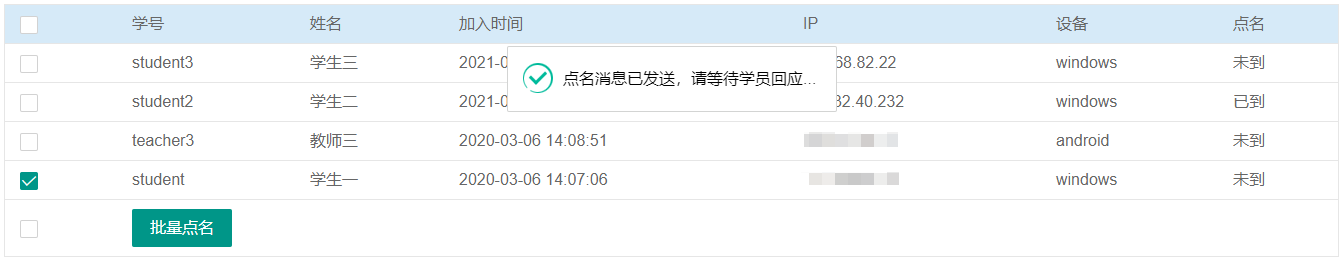

效果如下图所示
点击【点名】按钮后通过websocket发送一条消息,消息内容包含被点名的学员ID或者其他标识,主要JS代码如下
//批量点名 function dianmingsome(){ var checkednum = $("#list_form").find("input[name='memberid[]']:checked").length; if(checkednum==0){ layer.msg("您还没有选择", {icon: 2}); return false; } layer.load(0, {shade: [0.2, '#393D49']}); var useridstr = ","; $("#list_form").find("input[name='memberid[]']:checked").each(function(index, elem){ useridstr += elem.value +","; }); var to_client_id = "all"; var to_client_name = "所有人"; ws.send('{"type":"dianming","to_client_id":"'+to_client_id+'","to_client_name":"'+to_client_name+'","content":"'+useridstr+'"}'); layer.msg("点名消息已发送,请等待学员回应...", {icon: 1}); layer.closeAll('loading'); return false; }
效果如下图所示

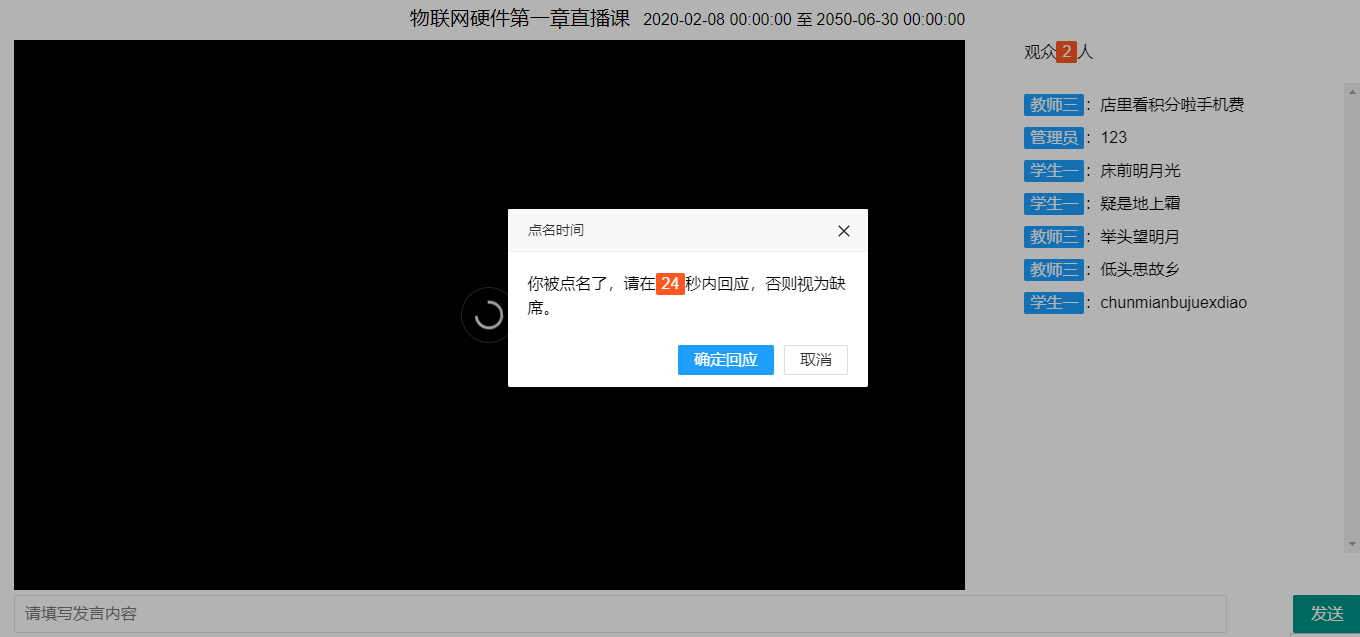

被点名的学员收到消息后自动弹出提示框,并开始倒计时。
倒计时结束后提示框消失,无法再进行回应。
主要JS代码如下
//弹出层索引 var index11, index12; //点名倒计时 var reply_timer, reply_timerb; var leftseconds = 30; //被点名时 function dianming(from_client_id, from_client_name, content, time){ if(content===undefined){ return false; } if(content.indexOf(","+ client_userid +",")>=0){ leftseconds = 30; clearInterval(reply_timer); clearInterval(reply_timerb); index11 = layer.confirm('你被点名了,请在<span class="layui-badge">'+ leftseconds +'</span>秒内回应,否则视为缺席。', {title:'点名时间', btn: ['确定回应','取消']}, function(){ clearInterval(reply_timer); clearInterval(reply_timerb); dianming_reply(); dianming_close(); }, function(){ clearInterval(reply_timer); clearInterval(reply_timerb); dianming_close(); } ); reply_timer = setTimeout(function(){ dianming_close(); }, 30000); reply_timerb = setInterval(function(){ leftseconds--; if(leftseconds<=0){ clearInterval(reply_timerb); dianming_close(); } $(".layui-layer-content").html('你被点名了,请在<span class="layui-badge">'+ leftseconds +'</span>秒内回应,否则视为缺席。'); }, 1000); } } //回应点名 function dianming_reply(){ var to_client_id = "all"; var to_client_name = "所有人"; $.ajax({ url: '/zhibod/dianming/replyok', type: 'POST', dataType: "json", data: {"zhiboid":zhiboid}, beforeSend: function(){ layer.load(0, {shade: [0.2, '#393D49']}); }, success: function(result){ if(result.code=="success"){ ws.send('{"type":"dianming_reply","to_client_id":"'+to_client_id+'","to_client_name":"'+to_client_name+'","content":"'+client_userid+'"}'); layer.msg("回应成功", {"icon":1}); }else{ layer.msg(result.msg, {"icon":2}); } }, error: function(){ layer.msg("系统错误,请联系管理员", {"icon":2}); }, complete: function(){ layer.closeAll('loading'); } }); } //关闭点名 function dianming_close(){ layer.close(index11); }
回应成功后控制端的点名状态会自动更新。
